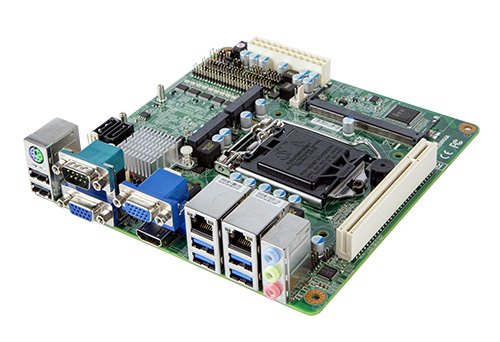

Mini-ITX86358-H81
· LGA1150 酷睿4代 i3/i5/i7/奔腾/赛扬处理器
· 英特尔 H81 /Q87 PCH
· DDR3/DDR3L 1600MHz内存，最大支持16GB
· 双英特尔千兆网口
· 2 个 SATA3.0 , 12 个串口
· 4 个 USB3.0 , 6 个 USB2.0接口
· 1 个 Mini PCIe, 1 个 mSATA, 1 x PCI扩展槽
· 支持独立双显(H81)/独立三显(Q87)
|
Processor
|
CPU |
Intel 4th Gen Corei3/i5/i7/Pentium/Celeron Processor |
|
|
Socket |
LGA1150 |
||
|
Chipset |
Intel H81/Q87 PCH |
||
|
BIOS |
AMI UEFI |
||
|
DRAM |
Technology |
DDR3/DDR3L 1600/1333MHz |
|
|
Capacity |
Up to 16GB |
||
|
Socket |
2 x 204-Pin SO-DIMM Slot |
||
|
Display |
Graphics |
Intel HD Graphics with DX11.1 & OpenCL 1.2 |
|
|
Graphics Memory |
Share System memory up to1.7GB SDRAM |
||
|
VGA |
2 |
||
|
HDMI |
1 (Ver:1.4) |
||
|
Multi-Display |
2 Independent display 3 Independent display (Q87) |
||
|
LAN |
2 x Intel GbE Controller (i210AT+i211AT) |
||
|
Audio |
Realtek ALC887 w/Line-Out/Line-in/Mic |
||
|
CD-In |
Yes |
||
|
Watchdog |
Software Programming 1~255s System Reset |
||
|
TPM |
Yes |
||
|
Storage |
SATA |
2 x SATA3.0 （6Gb/s） |
|
|
mSATA |
1 (Share with Mini PCIe) |
||
|
RAID |
RAID 0/1 (Only Q87 SKU) |
||
|
I/O |
Serial Port |
12 x RS232(COM1&COM2 SupportRS232/422/485) |
|
|
LPT |
N/A |
||
|
USB |
4 x USB3.0 + 6 x USB2.0 |
||
|
GPIO |
4-In , 4-Out |
||
|
PS/2 |
Yes |
||
|
Expansion Slot |
PCI |
1 (Version: 2.3) |
|
|
Mini PCIe |
2 (One share with mSATA) |
||
|
Power |
Type |
ATX Power |
|
|
Form Factor |
170mm x 170mm (Mini-ITX) |
||
|
Environment |
Operation Temp & Humidity |
-10~70℃ /10~90%,non-condensing |
|
|
Storage Temp & Humidity |
-20~80℃ /10~90%,non-condensing |
||
|
Certification |
EMC |
CE / FCC |
|
