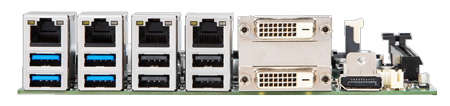

Mini-ITX86450-H110
· 支持LGA1151 英特尔酷睿6代/7代 i3/i5/i7处理器
· 英特尔 H110 晶片組
· 支持最新DDR4-2133/2400MHz内存，最大支持32GB
· LVDS/2DVI-D/HDMI，支持独立双显
· 4个英特尔千兆网口
|
Processor |
CPU |
6th & 7thIntel Core i3/i5/i7/Pentium/Celeron Processor |
|
Socket |
LGA1151 |
|
|
Chipset |
Intel H110 PCH |
|
|
BIOS |
AMI UEFI |
|
|
DRAM |
Technology |
DDR4-2133/2400MHz |
|
Capacity |
32GB |
|
|
Socket |
2 x 260-Pin SO-DIMM |
|
|
Display |
Graphics |
Intel HD Graphics |
|
VGA |
N/A |
|
|
DVI-D |
2, Up to 1920 x 1200@60Hz |
|
|
HDMI |
1, Up to 4096 x 2160@24Hz |
|
|
LVDS |
1, Up to 1920 x 1200@60Hz |
|
|
Multi-Display |
2 Independent displays |
|
|
LAN |
4 x Intel GbE (i211-AT) |
|
|
Audio |
Chipset |
Realtek ALC887 w/Line-Out & MIC |
|
Amplifier |
2 x 2W |
|
|
Watchdog |
Programmable from 1 to 255 Sec. |
|
|
Storage |
SATA |
2 x SATA3.0 |
|
mSATA |
N/A |
|
|
M.2 |
M.Key(SATA3.0),2242/2280 |
|
|
I/O |
Serial |
4 x RS232(COM1w/RS232/422/485) |
|
LPT |
N/A |
|
|
USB |
4 x USB3.0 + 5 x USB2.0 |
|
|
GPIO |
8 x In , 8-Out |
|
|
PS/2 |
N/A |
|
|
TPM |
Optional |
|
|
Expansion Slot |
PCIe 16X |
1 (Ver:3.0), Up to 75W TDP |
|
Mini PCIe |
1 (Full-Size) |
|
|
SIM |
1, Nano-SIM Holder |
|
|
Power |
Type |
DC-In 12~24V |
|
Form Factor |
170mm x 170mm (Mini-ITX) |
|
|
Environment |
Operation Temp& Humidity |
-10~60℃/10~90% Non-condensing |
|
Storage Temp & Humidity |
-20~80℃/10~90% Non-condensing |
|
|
Certification |
EMC |
CE / FCC |
|
O.S |
Skylake :Windows 7 32/64-Bit Windows 8.1/64-Bit/Windows 10 64it/Windows 2008 R2 64bit/Linux (Kernel 3.0+) Kaby Lake: Windows 10 64bit/Linux (Kernel 4.X) |
|
