· 低功耗、高质感整机

· 板载英特尔 Bay Trail-D J1900(2.0GHz, 10W)处理器

· 全铝新模具制作，前后六角镙钉固定

· 内部PCB模块化设计，可选抗震组合硬盘架

· 人性化设计：mSATA底部开盖、拆装方便

· 8串口设计，符合工业需求

rocessor	CPU	J1900 (Bay Trail-D )
	Frequency	2.0G/4C/4T
	TDP	10W
Memory	Frequency	1 x DDR3L 1600MHz
	Capacity	Optional , Up to 8GB
Storage	SATA	1 x 2.5’Hard Disk ( Optional )
	mSATA	1 x mSATA ( Full-Size, Optional )
Display	Graphics	Intel HD Graphics

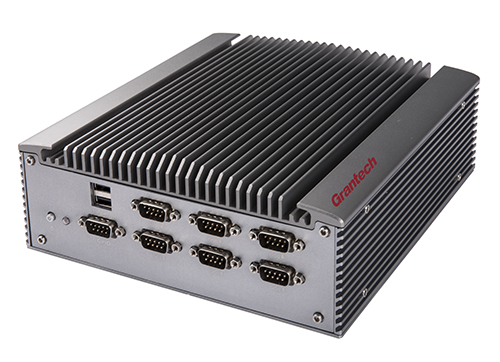

Front I/O	Button/LED Display	1 x Power Button(w/LED),  1 x HDD LED
	Serial	6 x COM (RS232)
	USB	2 x USB2.0
	GPIO	4-In, 4-Out

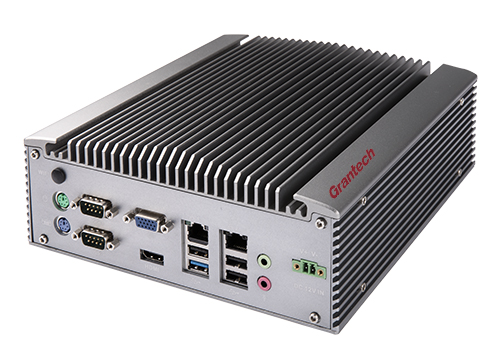

Rear I/O	Power In Connector	1 x DC 12V IN
	Display Port	1 x VGA；1 x   HDMI
	Serial	2 x COM(RS232/422/485)
	LAN	2 x Gigabit LAN
	USB	3 x USB2.0 ; 1 x USB3.0
	Power In Connector	1 x KB/MS
	Display Port	1 x Line-Out/MIC
Power Adaptor	Power Input	AC 100~240V/1.5A 50/60Hz
	Power Output	DC 12V/5A
Expansion	Mini PCIe	1 x Mini PCIe (Half-Size )
Dimensions	W:226mm D:205mm H:83mm
Environment	Operating   Temp &Humidity	-10~70℃/10~90%,  Non-Condensing
	Storage   Temp & Humidity	-20~80℃/10~90%,  Non-Condensing
