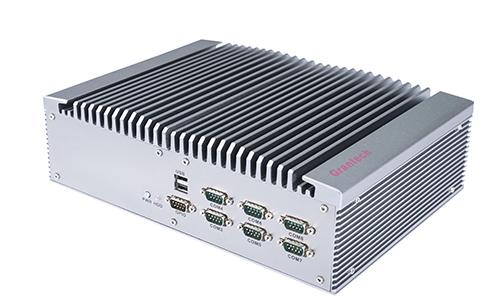

无风扇BOX6377-bt
· 板载英特尔J1900 (2.0GHz, 10W) 处理器
· 全铝新模具制作，前后六角镙钉固定
· 内部PCB模块化设计，可选抗震组合硬盘架
· 人性化设计：mSATA底部开盖、拆装方便
· 支持1 x DDR3L SO-DIMM 内存，最高可达 8GB
· 支持1 x Mini-PCIe SATA DISK，可选2.5″SATA2 Hard Disk
· 支持2 x PCI扩展
|
Processor |
CPU |
J1900 (Bay Trail-D ) |
|
|
Frequency |
2.0G/4C/4T |
||
|
TDP |
10W |
||
|
Memory |
Frequency |
1 x DDR3L 1600MHz |
|
|
Capacity |
Optional , Up to 8GB |
||
|
Storage |
SATA |
1 x 2.5" Hard Disk |
|
|
mSATA |
1 x mSATA (Full-Size, Optional) |
||
|
Display |
Graphics |
Intel HD Graphics |
|
|

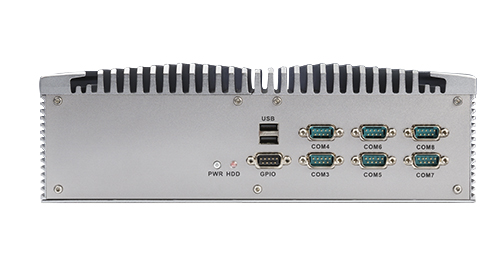

Front I/O |
Button/LED Display |
1 x Powe Button(w/LED), 1 x HDD LED |
|
|
Serial |
6 x COM(RS232) |
||
|
USB |
2 x USB2.0 |
||
|
GPIO |
4-In, 4-Out |
||
|
Rear I/O |
Power In Connector |
1 x DC 12V IN |
|
|
Display Port |
1 x VGA；1 x HDMI |
||
|
Serial |
2 x COM(RS232/422/485) |
||
|
LAN |
2 x Gigabit LAN |
||
|
USB |
3 x USB2.0 ; 1 x USB3.0 |
||
|
PS/2 KB/MS |
1 x KB/MS |
||
|
Audio |
1 x Line-Out/MIC |
||
|
Grounded |
1 x GND |
||
|
Power Adaptor |
Power Input |
AC 100~240V/1.5A 50/60Hz |
|
|
Power Output |
DC 12V/5A |
||
|
Expansion |
Mini PCIe |
1 x Mini PCIe (Half-Size) |
|
|
PCI |
2 x PCI Solt |
||
|
Dimensions |
W:299mm x D:220mm x H:95.8mm |
||
|
Environment |
Operating Temp & Relative Humidity |
-10~70℃/10~90%, Non-Condensing |
|
|
Storage Temp & Relative Humidity |
-20~80℃/10~90%, Non-Condensing |
||
|
Certification |
EMC |
CE / FCC |
|
