CPCI主板RIO-QM67
发表时间:4/6/2023 2:30:25 PM阅读次数:213
![](upload/20234614323799972.jpg)

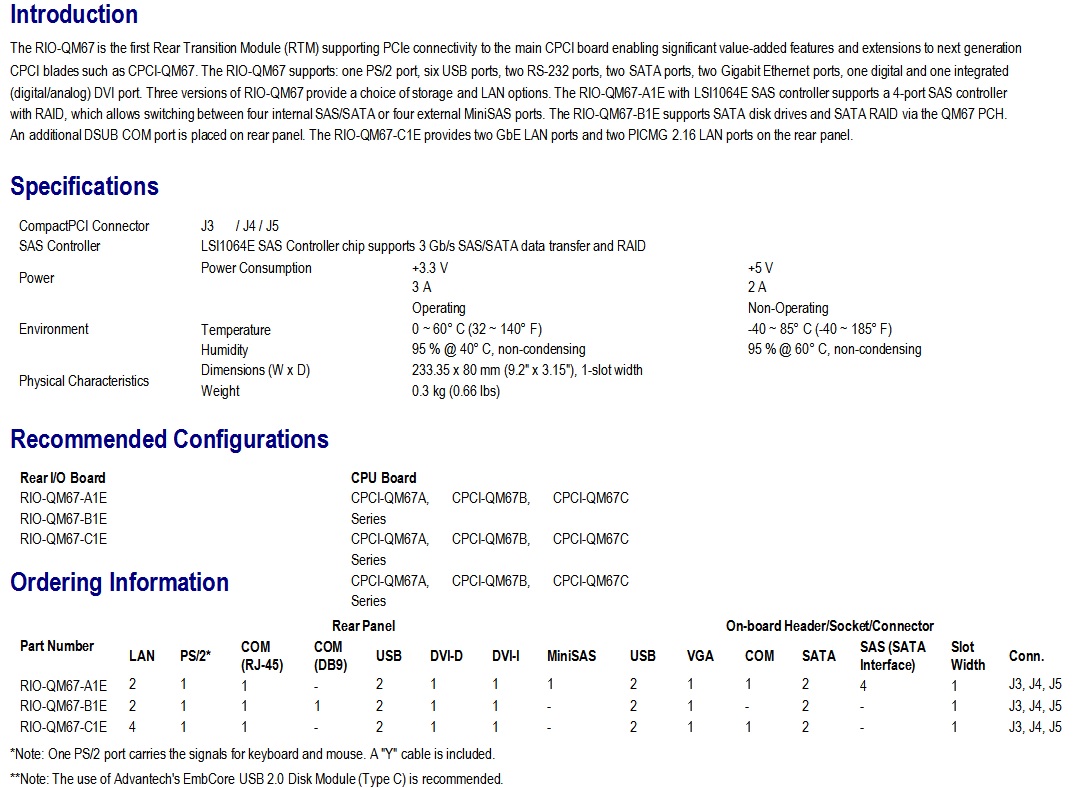

Features
ƒ External rear-panel interface connector for the CPCI-QM67 CPU board
ƒ Supports SAS, SATA, USB 2.0, COM and PS/2 interfaces
ƒ One USB header for USB NAND flash module
ƒ Two RJ-45 GbE ports on the rear panel
ƒ One Digital and One analog DVI port on the rear panel
ƒ One MiniSAS port on the rear panel (for RIO-QM67-A1E)
ƒ Two PICMG 2.16 LAN ports on the rear panel (for RIO-QM67-C1E)
