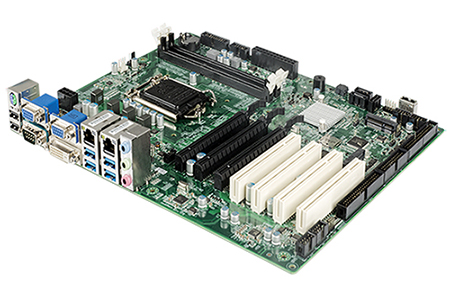

LGA1150 Intel Core i3/i5/i7 ATX 母板，带2VGA/HDMI/DVI-D，双GbE网口

· 支持 DDR3/DDR3L，最大可达16GB

· 双英特尔千兆网口

· 10 个串口，7个USB2.0接口，4 x USB3.0 接口

· 1个 Mini PCIe扩展槽，1个mSATA

· 4 个 PCI，1 个 PCIe 16X，2个PCIe 1X 扩展槽

· 支持 2VGA/DVI 显示

Processor	CPU	4th Intel Core i3/i5/i7/Pentium/Celeron   Processor
	Type	LGA1150
	Chipset	Intel H81 PCH
	BIOS	AMI UEFI
DRAM	Technology	DDR3/DDR3L 1600/1333MHz
	Capacity	Up to 16GB
	Socket	2 x 240-Pin DIMM Slot
Display	Graphics	Intel HD Graphics Support DX11.1 & OpenCL 1.2
	Graphics Memory	Share System memory up to 1.7GB SDRAM
	VGA	2 x VGA，Up to 1920 x 1200@60Hz
	DVI-D	1，Up to 1920x1200@60Hz
	Multiple Display	2 Independent displays
LAN	2 x Intel LAN (i211-AT+i217-LM)
Audio	Realtek ALC887 with Line-in/MIC/Line-out
Watchdog	Programmable from 1 to 255 Sec
Storage	SATA	1 x SATA3.0 +1 x SATA2.0
	mSATA	1
I/O	Serial	10 x RS232 (COM1 & COM2 Support RS232/422/485, COM1 w 5V/12V Power)
	LPT	1
	USB	4 x USB3.0 + 7 x USB2.0
	GPIO	4-In , 4-Out
	PS/2	1
	TPM	1
Expansion Slot	PCIe x16	1 ( Ver: 3.0)
	PCIe 1X	2 (Ver: 2.0)
	PCI	4 (Ver: 2.3)
	Mini PCIe	1 (Only with USB2.0 Signal)
Power	Type	ATX
Form Factor	305mm x 244mm (ATX )
Environment	Operation Temp & Humidity	-10~70℃/10~90%, Non-condensing
	Storage Temp & Humidity	-20~80℃/10~90% Non-condensing
Certification	EMC	CE / FCC
O.S	Windows XP Pro/Windows 7 32/64-Bit Windows 8.1 64-Bit/Windows 2008 R2/Linux (Kernel 3.0+)
