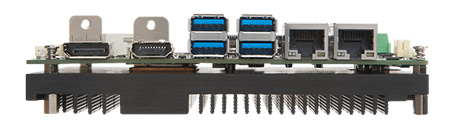

3.5"/2.5"/1.8"8F388-E3940
· 英特尔凌动六代 Apollo 3.5”嵌入式主板
· 2 个 英特尔千兆网口
· 1 个 SATA3.0 , 6 个 串口
· 4 个 USB3.0 , 2 个 USB2.0
· 1 个 Mini PCIe 扩展槽
· 支持 LVDS/HDMI/VGA/DP 显示
· 支持独立双显或三显
· DC 12V~24V 输入
|
rocessor
|
CPU |
x5-E3940 (4C/4T) |
|
Frequency |
1.6GHz, Burst Frequency 1.8GHz |
|
|
TPD |
9.5W |
|
|
BIOS |
AMI UEFI |
|
|
DRAM |
Frequency |
DDR3L 1600/1866MHz |
|
Capacity |
Up to 8GB |
|
|
Socket |
204pin SO-DIMM |
|
|
Display |
Graphics |
Intel HD Graphics |
|
Graphics Memory |
Share System memory up to 1.7GB SDRAM |
|
|
DP |
1 |
|
|
HDMI |
1 |
|
|
LVDS |
2 x 24bit 2CH (LVDS1&LVDS2) |
|
|
eDP |
1 ( Share w/LVDS1 ) |
|
|
Multiple Display |
3 independent displays |
|
|
LAN |
2 x Intel GbE LAN [ i211-AT ] |
|
|
Audio |
Chipset |
Realtek ALC887 w/ MIC/Line-out |
|
Ampilifier |
3W |
|
|
Watchdog |
1~255 Watchdog Times |
|
|
Storage |
SATA |
1 x SATA3.0 （6Gb/s） |
|
mSATA |
1 (Full-Size) |
|
|
I/O |
COM |
6 x RS232（COM1w/RS232/422/485） |
|
USB |
4 x USB3.0 + 2 x USB2.0 |
|
|
GPIO |
8-In, 8-Out |
|
|
PS/2 |
N/A |
|
|
TPM |
Yes |
|
|
Expansion Slot |
SIM |
1 |
|
Mini PCIe |
1 |
|
|
Power |
DC 12V~24V Power Input |
|
|
Form Factor |
146mm x 102mm (3.5") |
|
|
Environment |
Operation Temp & Humidity |
0~60℃/10~90% non-condensing |
|
Storage Temp & Humidity |
-20~80℃/10~90%, non-condensing |
|
|
Certification |
EMC |
CE / FCC |
|
O.S |
Windows 10 64bit / Linux Kernel 4.1+ (Fedora 25/Ubuntu 16.04) |
|
